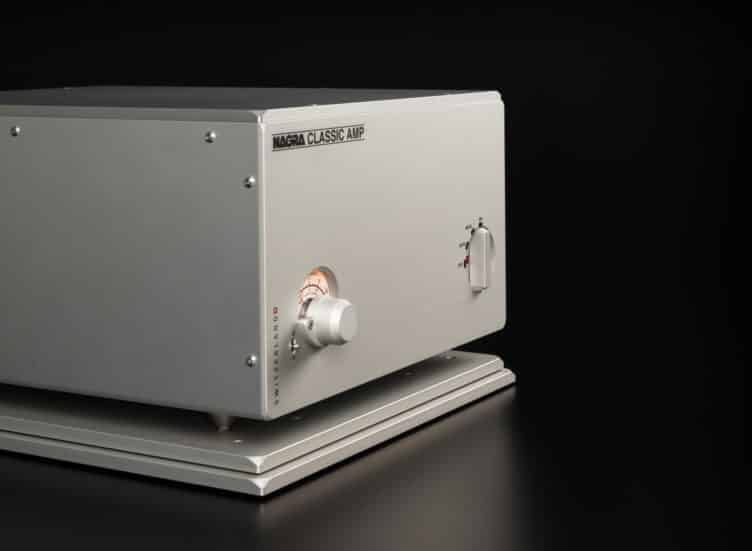

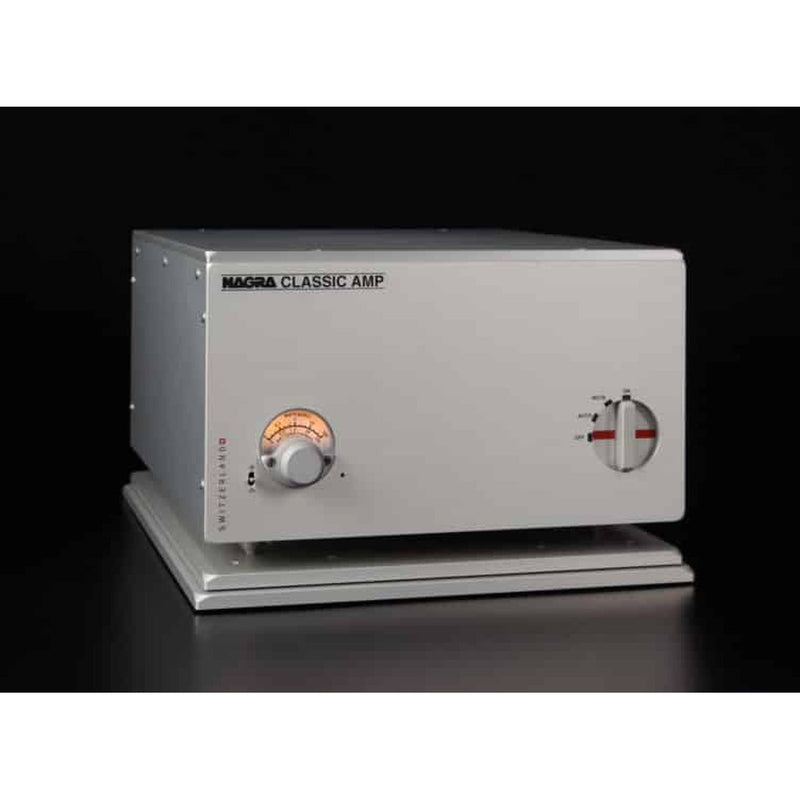

NAGRA CLASSIC AMP
แบรนด์: NAGRA
650,000 ฿
Classic AMP: Class A Into Class ABThe Classic AMP runs in pure class A over a very large part of its power band, transitioning into class AB only beyond that range - giving the sonic character of class A operation across the power levels most music actually demands.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Classic AMP: Class A Into Class ABThe Classic AMP runs in pure class A over a very large part of its power band, transitioning into class AB only beyond that range - giving the sonic character of class A operation across the power levels most music actually demands.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Classic AMP: Class A Into Class ABThe Classic AMP runs in pure class A over a very large part of its power band, transitioning into class AB only beyond that range - giving the sonic character of class A operation across the power levels most music actually demands.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Each output stage is built from tandem MOSFET transistors, a configuration Nagra selected specifically for its measured linearity and thermal behaviour under sustained class-A bias.
Classic AMP: The Nagra ModulometerA traditional Nagra Modulometer sits on the front panel, showing the output power of each channel in real time - a direct link back to the analogue meters found on Nagra’s professional recording equipment.
Alongside the Modulometer, LED indicators for saturation and temperature give an immediate visual warning if either channel is being driven into clipping or running hot.
Alongside the Modulometer, LED indicators for saturation and temperature give an immediate visual warning if either channel is being driven into clipping or running hot.
Classic AMP: 100W Stereo, 200W BridgedIn standard stereo operation the Classic AMP delivers 100W RMS per channel into 8 Ohm, with a bandwidth of 10Hz to 80kHz (+0/-3dB) and THD+N under 0.05%.
The amplifier can also be bridged for 1x 200W into 4 Ohm as a mono unit, or run in a bi-amplification configuration - the same chassis adapting to a stereo, mono, or bi-amped role depending on how a system is built.
The amplifier can also be bridged for 1x 200W into 4 Ohm as a mono unit, or run in a bi-amplification configuration - the same chassis adapting to a stereo, mono, or bi-amped role depending on how a system is built.
Classic AMP: Balanced Inputs and Oversized Power SupplyBoth balanced and unbalanced inputs are provided, with selectable input sensitivity of 1V or 2V RMS to match whatever preamplifier or source feeds the Classic AMP directly.
Behind the front panel sits a 300,000µF capacitor bank and an overdimensioned transformer with PFC technology, rated for 90-264V AC mains - a power supply built with considerable headroom over the amplifier’s stated 400W maximum draw.
Behind the front panel sits a 300,000µF capacitor bank and an overdimensioned transformer with PFC technology, rated for 90-264V AC mains - a power supply built with considerable headroom over the amplifier’s stated 400W maximum draw.
