MATRIX AUDIO X-SPDIF3
แบรนด์: MATRIX AUDIO
17,990 ฿

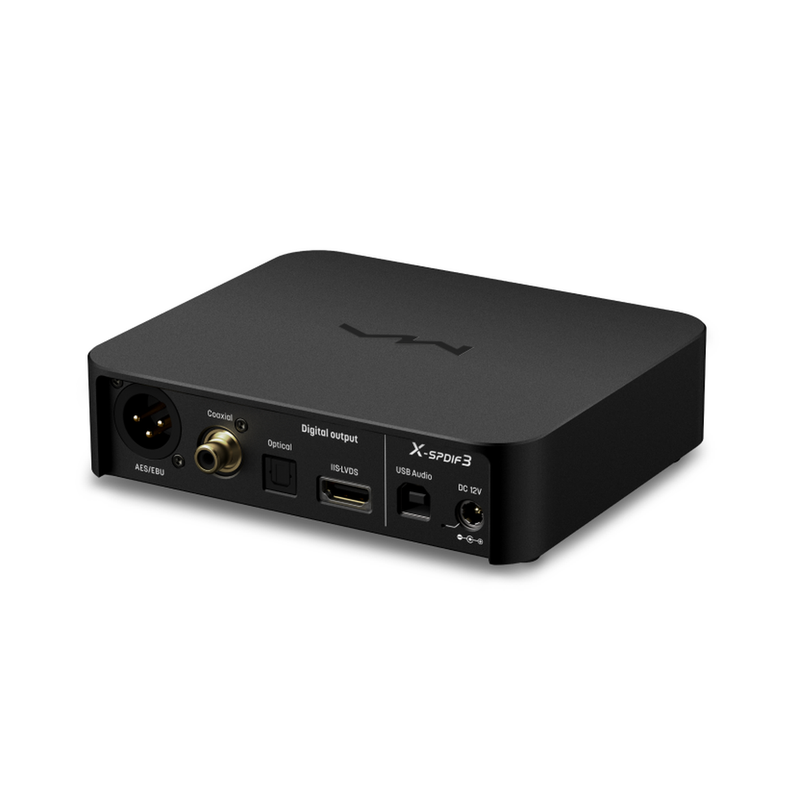

X-SPDIF3: USB to S/PDIF and IIS-LVDSX-SPDIF3 takes a USB input from a computer or network streamer and converts it to S/PDIF - optical, coaxial or AES/EBU - or to Matrix Audio’s own IIS-LVDS format, for feeding an external DAC that does not accept USB directly.
IIS-LVDS is the highest-resolution output on X-SPDIF3, supporting formats the S/PDIF outputs cannot carry - useful when pairing it with a Matrix Audio DAC or another IIS-LVDS-compatible unit.
IIS-LVDS is the highest-resolution output on X-SPDIF3, supporting formats the S/PDIF outputs cannot carry - useful when pairing it with a Matrix Audio DAC or another IIS-LVDS-compatible unit.
X-SPDIF3: Format SupportThe Optical, Coaxial and AES outputs carry PCM at 16 to 24Bit across 44.1kHz to 192kHz, plus DSD64 via DoP - the standard ceiling for S/PDIF-based formats.
The IIS-LVDS output goes further: PCM up to 32Bit/768kHz, and DSD64/128/256 via DoP or DSD64/128/256/512 natively - covering effectively every format a source is likely to output.
The IIS-LVDS output goes further: PCM up to 32Bit/768kHz, and DSD64/128/256 via DoP or DSD64/128/256/512 natively - covering effectively every format a source is likely to output.
X-SPDIF3: Isolated IIS-LVDS OutputThe IIS-LVDS output on X-SPDIF3 is galvanically isolated from the ground reference on the USB input side, keeping noise picked up on the USB side of the connection from reaching the DAC.
X-SPDIF3 can run on USB bus power (5V/500mA) or an external DC 12V supply rated at least 400mA, for a system where a cleaner, dedicated power source is preferred over bus power.
X-SPDIF3 can run on USB bus power (5V/500mA) or an external DC 12V supply rated at least 400mA, for a system where a cleaner, dedicated power source is preferred over bus power.

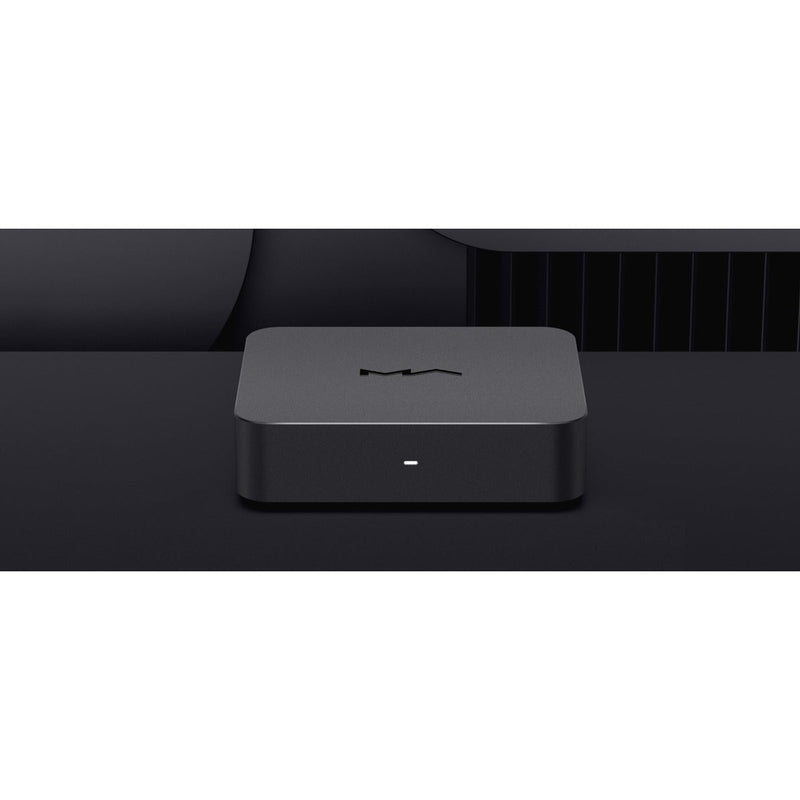

X-SPDIF3: Aluminum CNC ChassisX-SPDIF3 is built in a CNC-machined aluminum chassis, chosen for electromagnetic shielding and to reduce the mechanical vibration reaching the internal circuitry.

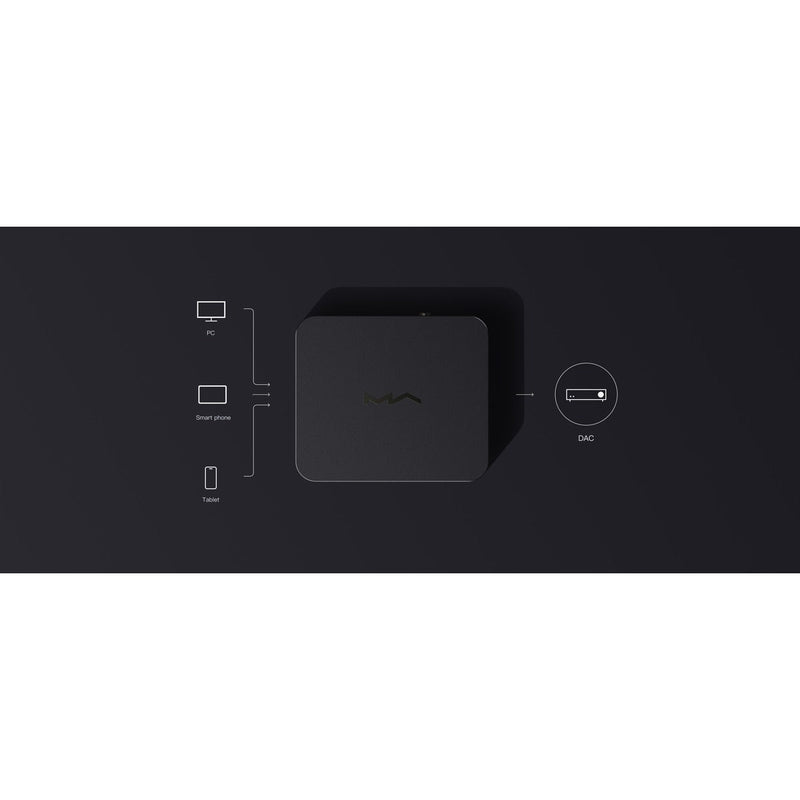

As a small format-conversion box rather than a full source component, X-SPDIF3 is meant to sit between a computer or streamer and a DAC that lacks a native USB input.
As a small format-conversion box rather than a full source component, X-SPDIF3 is meant to sit between a computer or streamer and a DAC that lacks a native USB input.
