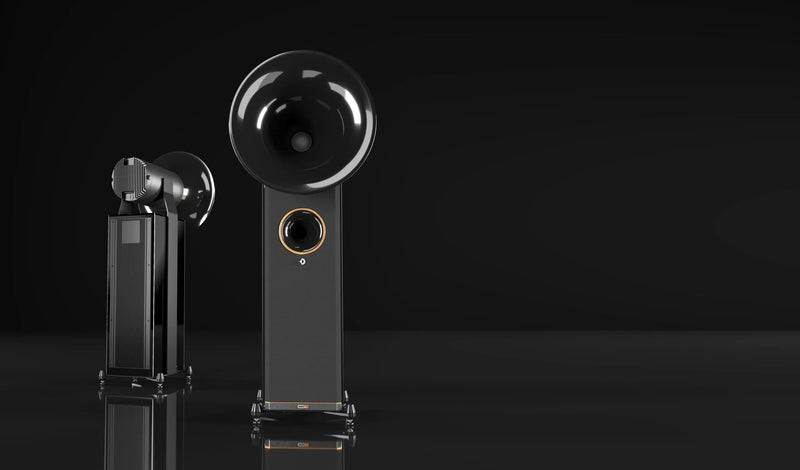

The Best DUO We Have Ever CreatedThe DUO GT 'Grande Twin' is the third evolutionary stage of a horn system that has been in Avantgarde Acoustic's portfolio since 1993 - the proven spherical horn architecture combined with the improved XM2 midrange driver, the new XT3 supertweeter from the TRIO and the XB12 bass drivers with their huge voice coils from the SpaceHorn.

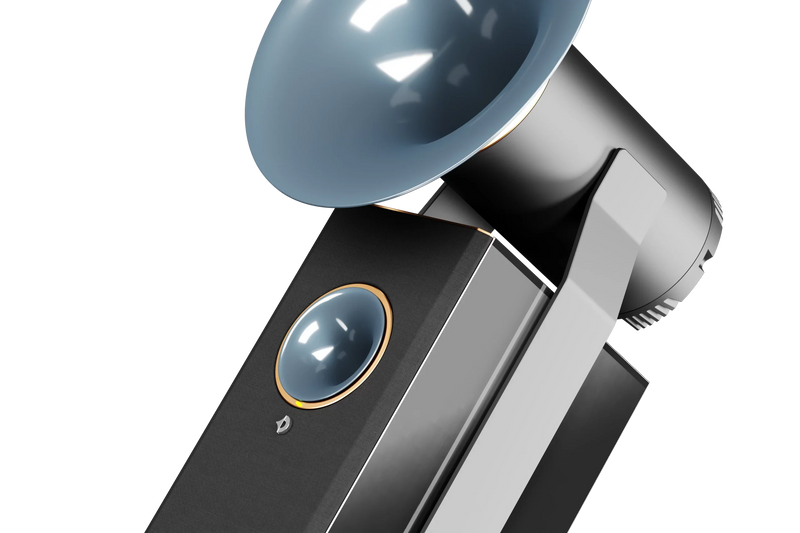

Driven by its impressive 670 mm spherical wave horn with a frequency response up to 170 Hz, the DUO is the epitome of performance and dynamic elegance. In the fascinating world of spherical wave horns, size is the defining criterion: the larger the horn, the deeper its lower bandwidth and the more the listener is drawn into the maelstrom of superior performance.
Driven by its impressive 670 mm spherical wave horn with a frequency response up to 170 Hz, the DUO is the epitome of performance and dynamic elegance. In the fascinating world of spherical wave horns, size is the defining criterion: the larger the horn, the deeper its lower bandwidth and the more the listener is drawn into the maelstrom of superior performance.
EvolutionAA Drivers. XM2 and XT3.The EvolutionAA XM2 midrange driver - a 170 mm chassis with a powerful Alnico magnet - is designed for a large linear diaphragm excursion. Its new Soft Mesh Compound cone uses a robust mesh body sealed with a damping elastomer coating, creating a broadband absorption effect that effectively dampens partial vibrations of the diaphragm and thus unwanted harmonics.
The DUO GT uses the XT3 tweeter from the TRIO G3. The XT3's lighter, annular diaphragm extends the frequency range up to 28,000 Hz at a sensitivity of 107 dB, providing greater clarity, focus, and a fuller, more natural sound.
The DUO GT uses the XT3 tweeter from the TRIO G3. The XT3's lighter, annular diaphragm extends the frequency range up to 28,000 Hz at a sensitivity of 107 dB, providing greater clarity, focus, and a fuller, more natural sound.
XB12 Bass Drivers. Radical Bass. Radical Drive.By using two powerful XB12 drivers in a bass-reflex configuration, the dynamic headroom of the bass has been virtually doubled compared to its predecessor. The voice coil has grown from 100 mm to 153 mm - a gigantic 6-inch motor structure that achieves superior values for power factor and power handling while significantly reducing thermal compression.
The motor structure consists of two High Grade magnets with 1.15 Tesla flux density on a 480 mm voice coil circumference. The diaphragm is a composite of long-fibre paper and carbon fibre, and the XB12's new SingleFrame chassis features robust die-cast aluminium cantilevers that enclose the magnet for a totally rigid material bond around the motor structure.
The motor structure consists of two High Grade magnets with 1.15 Tesla flux density on a 480 mm voice coil circumference. The diaphragm is a composite of long-fibre paper and carbon fibre, and the XB12's new SingleFrame chassis features robust die-cast aluminium cantilevers that enclose the magnet for a totally rigid material bond around the motor structure.
G3-1000 Bass AmplifierThe DUO GT's active subwoofer is powered by the G3-1000 power module, a 1,000-watt integrated amplifier that provides ample headroom for complex EQ settings. The subwoofer can be switched on remotely via a 12-volt switching input.
Direct connection to integrated amplifiers, power amplifiers or receivers is via speaker-level input terminals; alternatively, balanced, transformer-coupled XLR line inputs are available. All electronics are protected by a state-of-the-art E-Fuse circuit - faster and safer than conventional fuses, and ideal in terms of sound.
Direct connection to integrated amplifiers, power amplifiers or receivers is via speaker-level input terminals; alternatively, balanced, transformer-coupled XLR line inputs are available. All electronics are protected by a state-of-the-art E-Fuse circuit - faster and safer than conventional fuses, and ideal in terms of sound.
Digital Crossover. Everything Under Control.The bass power amplifier is equipped with an advanced digital sound processor. With a precision and bit accuracy that cannot be achieved with analogue technology, the digital crossover eliminates all passive filter elements in the signal path. The completely redesigned user interface is easy and intuitive to use, and all parameters can be adapted to the room acoustics or listening habits.
The BASS-BOOST control boosts the bass response below 45 Hz from linear to fat. An 8-band equaliser lets each band be boosted or cut by up to 4 dB. The LPF-RANGE slider sets the upper crossover frequency of the subwoofer for a warmer or more dynamic and punchy tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
The BASS-BOOST control boosts the bass response below 45 Hz from linear to fat. An 8-band equaliser lets each band be boosted or cut by up to 4 dB. The LPF-RANGE slider sets the upper crossover frequency of the subwoofer for a warmer or more dynamic and punchy tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
Digital Crossover. Everything Under Control.The G3-500's advanced digital sound processor eliminates all passive filter elements in the signal path with a precision and bit accuracy that cannot be achieved with analogue technology. The Avantgarde Control Software allows a wide range of additional settings, and the DSP's two LAN sockets allow multiple subwoofers to be daisy-chained for simultaneous programming.
The BASS-BOOST control boosts the low-frequency response below 45 Hz from linear to rich. An 8-band equaliser lets each band be raised or reduced by up to 4 dB, the LPF-RANGE slider adjusts the upper crossover frequency of the subwoofer for a warmer or more dynamic tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
The BASS-BOOST control boosts the low-frequency response below 45 Hz from linear to rich. An 8-band equaliser lets each band be raised or reduced by up to 4 dB, the LPF-RANGE slider adjusts the upper crossover frequency of the subwoofer for a warmer or more dynamic tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
Digital Crossover. Everything Under Control.The G3-1000's advanced digital sound processor eliminates all passive filter elements in the signal path with a precision and bit accuracy that cannot be achieved with analogue technology. The Avantgarde Control Software allows a wide range of additional settings, and the DSP's two LAN sockets allow multiple subwoofers to be daisy-chained for simultaneous programming.
The BASS-BOOST control boosts the low-frequency response below 45 Hz from linear to rich. An 8-band equaliser lets each band be raised or reduced by up to 4 dB, the LPF-RANGE slider adjusts the upper crossover frequency of the subwoofer for a warmer or more dynamic tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
The BASS-BOOST control boosts the low-frequency response below 45 Hz from linear to rich. An 8-band equaliser lets each band be raised or reduced by up to 4 dB, the LPF-RANGE slider adjusts the upper crossover frequency of the subwoofer for a warmer or more dynamic tonal balance, and two narrow-band notch filters reduce unwanted room resonances.
