DENAFRIPS ARES 15TH

Ares 15th: True Balanced R-2R DecodingARES 15th decodes with a true balanced 24-bit R-2R ladder network plus a 6-bit DSD path using 32-step FIR filters, built from low-thermal-effect, hand-matched resistors accurate to 0.01%.

That architecture is designed to reproduce deep, powerful bass, smooth and detailed mids, and clear, transparent highs, rendering every audio detail with a level of quality Denafrips positions well above its peers.

Ares 15th: FPGA Processing and Adaptive ReclockingDigital signal processing runs through an onboard FPGA, with an adaptive FIFO buffer reclocking incoming digital audio before it reaches the R-2R conversion stage.

A proprietary USB audio solution built on an STM32F446 ARM-based MCU handles the USB input, with a licensed Thesycon driver for Windows and fully driverless operation on Mac and Linux.

Ares 15th: DSD1024 and PCM1536 Over USBARES 15th accepts DSD64 (2.8224MHz DoP) across coax, TOSLink, I²S and USB inputs, stepping up to DSD1024 (45.1584MHz) and PCM up to 1536kHz over USB alone.

Listeners can choose between non-oversampling (NOS) and oversampling (OS) modes, and between slow and sharp digital filters, to match the converter’s character to their system.

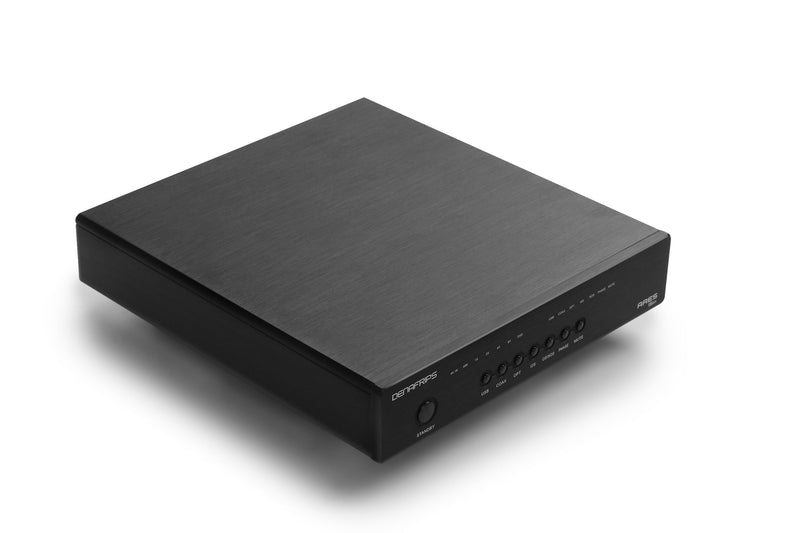

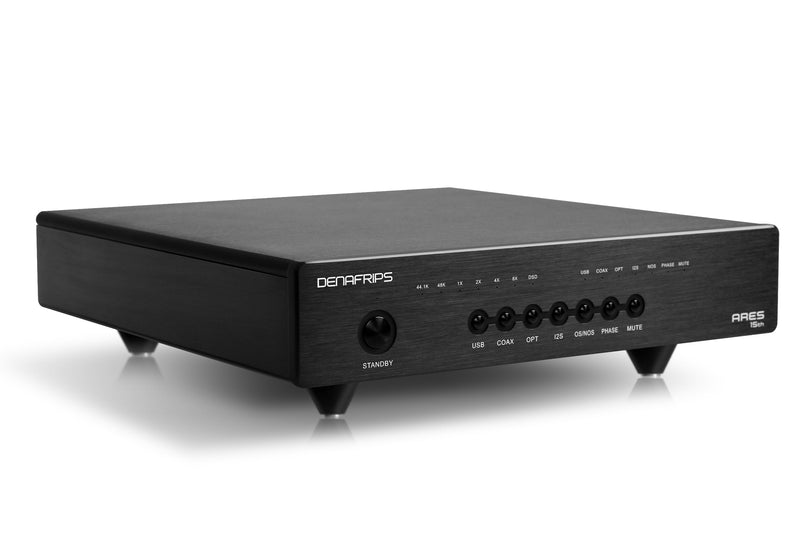

Ares 15th: A Compact Anodized Aluminum ChassisARES 15th now ships in an anodized aluminum chassis offered in both silver and black, a highly requested option for listeners who want a compact-form-factor DAC with a lighter finish.

At 230 x 220 x 60mm and 3.5kg, it builds on the popularity of the original Ares 15th with further improved build quality, backed by a 12-month warranty.
